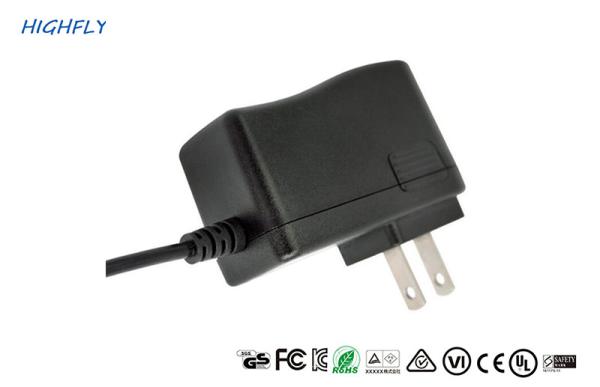

Input 100 240V ac 50/60hz switching power supply 5v 12v 24v With UL Certificate

Product Categories

Shenzhen Highfly Technology Co., Limited

Contact Now

Ask Lasest Price
Brand Name :	HaiFyer
Model Number :	GS-120015
Certification :	CE FCC ROHS
Price :	1.98usd/PC
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300000PCS per month
Delivery Time :	5-8 work days

Add to Cart

Detailed Specifications:

Input	Rated Input Voltage	100Vac To 240Vac	Rated Input Frequence	50/60HZ
	Input Voltage Range	90Vac To 264Vac	Inrush Current	60A Max At 100-240Vac Input For A Cold Start At 25 ℃
	Input Current	0.3A max At 100-240Vac Input	Leakage Current	0.25mA Max
	Efficiency	Meet Average Efficiency Achieves ES Level VI
Output	Voltage(VO)	DC 12V 1.5A
	Output Regulation	±5%@constant Voltage Mode
	Ourrent Regulation	±5%@constant Current Mode
	Ripple and Noise	300mVp-p max @20MHz Bandwidth 47uF Ele.Cap.+0.1uF Cer.Cap
	Maxinum Power(PO)	18W Max @ DC12V
	Hold-UP Time	10ms Typical At Full Load
	Protection	Over-Current Protection(OCP); Short-circuit Protection(SCP); Over-voltage Protection(OVP)
	DC Cable	2464/2468 24AWG L=1.2/1.5/1.8m
	AC Plug	US, AU, UK, EU, JP, KC Interchangeable plug(other plug available)
	DC Connector	DC Jack: 5.52.5/5.52.13.51.35/4.0*1.7mm or other Micro USB Type Type C Type
	DC Plug Type	Right angle / 90° angle
	USB	N/A
	AC Inlet	N/A
EMC	EMI	FCC CLASS B; CISRP22 CLASS B; EN55022
	EMS	IEC61000-4-2,3,4,5,6,8,11
Safety	LVD, EN60950,EN61558,UL60950,UL61558
Environmental	Operation Temperature	0℃ to 40℃ ambient
	Stotage Temperature	-10℃ to 70℃
	MTBF: >30,000 hours At Full Load And 25℃ Ambient Temperature MIL-HDBK-217F
Size (LWH)	813148 MM

Application:

• LED strips/ mobile phone

• CCTV cameras

• ADSL AP/ MP4/ MP3 player

• Wireless LAN stations LCD monitors

• Booster pumps

• Communication terminals

• Various portable device of machines

Safety Specifications:

• Universal Input 100~240VAC 50/60Hz

• Over voltage protection: 120%min

• Over current protection: 120%min

• Over protection

• Short-circuit protection: automatic recovery

• Load regulation: ±5%

• Green Circuit Design

• High Efficiency

Packaging & Shipping

Packaging Details:

• white box

• PE bag with over-lap cardboard

• Carton Size: 490*325*330mm

• Shipping Mark: UP TO YOU
