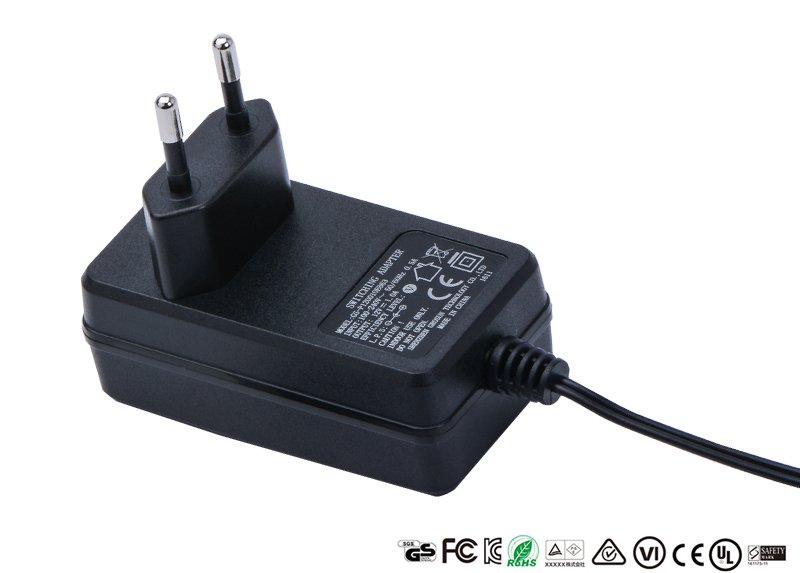

Universal Ac Dc Power Adapter Led Lighting Dc Power Supply 220v To 24v 0.5a 12w

Ask Lasest Price
Brand Name :	Haifyer
Model Number :	ZF120A-240050
Certification :	CE FCC UL GS BIS ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	1200000PCs/Month
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

Universal Ac Dc Power Adapter Led Lighting Dc Power Supply 220v To 24v 0.5a 12w

Universal Ac Dc Power Adapter Led Lighting Dc Power Supply 220v To 24v 0.5a 12w

Output ratings

INPUT	OUTPUT
INPUT	Voltage	Current
100-240VAC	5V	2.1A
	6V	2.0A
	9V	1.0A
	12V	1.0A
	15V	1.0A
	24V	0.5A
100-240VAC	5V	2.5A
	6V	2.0A
	9V	1.5A
	12V	1.2A
	24V	0.6A
	30V	0.4A

Features

1, Universal Input Range 100-240VAC

2, Doe Efficiency Level VI

3, Wall Plug Styles

4, Class 2 power

5, Regulated Output with Low Ripple

6, Impact-Resistant Polycarbonate Enclosure

7, Power Consumption <0.1W when no load

8, Limited Power Source

9, Certified to UL/EN/IEC60950-1

UL CUL CE ROHS FCC KC KCC SAA C-tick EAC TUV GS PSE

Specifications
Input Voltage Range	VAC	100-240Vac 50/60Hz
Input Current(Max)	A	1.0A(100VAC Input)
Power Factor	-	Meets EN61000-3-2
Temperature Coefficient	℃	±0.05%/℃
Voltage Accuracy	%	±2%
Total Regulation	-	±5%
Ripple & Noise	mV	60mV
Over Voltage Protection	℃	110-150% of nominal (Cycle input power to reset)
Efficiency at Average Load	-	88% min
Operation Temperature	-	0 to +60℃, derating linearly to 50% load above 40℃
Storage Temperature	-	-10 to +85℃
Humidity (non condensing)	-	10-90% RH
Cooling	-	Convection
Withstand Voltage	-	Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
Safety Agency Certifications	-	UL62368,UL60950-1, EN609501-1, IEC60950-1, CE Mark
DOE Regulation	-	VI
Off-Load Power Consumption	mW	<210mV
Conducted & Radiated EMI	-	EN55023-B, FCC Class B
Immunity	-	EN55024
Weight	G	180g
Cable Length and Thickness	mm	1200mm
Output Connector	mm	5.5x2.1mm (Accept more request)
MTBF 100%, 25℃	Hours	50,000 hours
Warranty	Years	2 years

Applications

1->.: CCTV camera / LED lights / strips / LED torch / player / audio turntable / air humidifier / Aquarium.

2->.: Water purifier.

3->.: Router /Modem / Set top box/LCD.

4->.: Medical machine / POS machine / Beauty & Health equipment / monitor / Fans.

5->.: Pump / toys / display / digital photo frame / Oven / other electronic products.

FAQ

Q1. Can I have a sample order for Power adapter?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-3days, mass production time needs 2-4 weeks

Q3. Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%.
Secondly, during the guarantee period, we will send new backup with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
