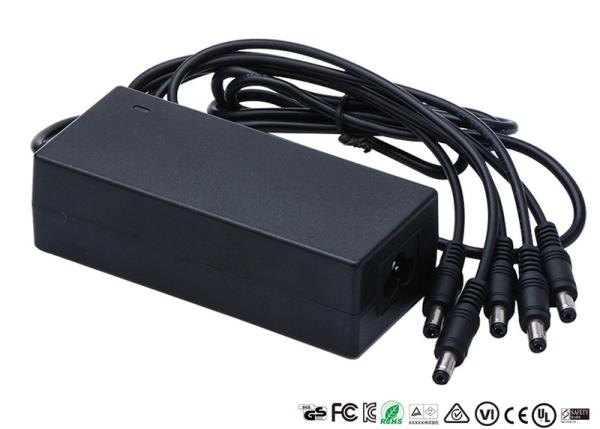

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable

Ask Lasest Price
Brand Name :	Haifyer
Model Number :	ZF120A-1204001
Certification :	CE FCC UL GS BIS ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	1200000PCs/Month
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable

Product Featurej
1. OEM service is offered: logo customization, design customization, customized packaging.
2. Full Copper AC and DC Wire Cable: 1.2m,1.5m for your choice.
3. Using copper transformer to prevent the high temperature working.
4. Level V0 Fireproof ABS/PC shell: safe and reliable.
5. Passing EMC and 8 process for quality test for assurance.
6. Thousands of customers recommend!
7. Selling to the South America,Africa, European market.

Output ratings

INPUT	OUTPUT
INPUT	Voltage	Current
100-240VAC	12V	4.16A
	12V	4.0A
	12V	5.0A
	6V	6A
	6V	8A
	6V	10A

Features

1, Universal Full Input Range 100-240VAC(990-264V AC)

2, Energy Efficiency is DOE Level 6

3, Desktop Styles AC DC Power Supply

4, With Class 2 power

5, Regulated Output with very Low Ripple(0.091% Volt)

7, No load Power Consumption <0.091W

9, Certified to UL/EN/IEC60950-1 UL CUL CE ROHS FCC KC TUV GS

Input Range VAC:	100-240V(90-264V)50/60Hz 0.8 Max
Output VDC:	12V± 5%
Output Current:	4000mA
Output Power:	48W
AC Cable plug:	EU/US/UK/AU/IN
DC cable length:	1.53m 2468UL 18AWG (optional)
DC connector:	5.52.112 mm/5.5*2.5mm (optional)
Working Efficency:	>86.1%
Efficiency level :	DOE Level SIX
Certificates approved:	CE ,GS,CB,UL ,FCC,KC , Rohs,
Warranty:	100000 hours assurance
Safety protection :	OVP (132.2%-160% rated output voltage)
	OCP (126.2%-150% rated output current)
	SCP
	Thermal shutdown capability
Safety Standard :	EN60950,IEC60950,UL60950 ,K60950-1,GB4943.1-2011
Safety Standard :	EN60065,IEC60065
EMC standard:	EN55022/24/13/20, EN6100,FCC Part 15 subpart B Class 2
EMC standard:	J55022(H22)
Ripple and Noise:	< 58Mv @ full load,20MHz bandwidth
Input Current:	<0.53A
Input Inrush Current:	<31.3A. @ 264Vac /50Hz
Leakage Current:	< 0.26mA @ 264Vac / 50Hz
Dielectric Voltage (Hi-pot):	3000Vac /10mA / 60S
Turn On Delay Time:	< 3S @AC:100V- 240V & full load)
Standby power:	< 0.084W
Operating Temperature:	0°C - +43.5°C
Storage Temperature:	-20°C - +83.5°C
MTBF:	>100.000 Hrs @full load ,25.3°C
Adapter size:1205231.7	mm (L/W/H)

Applications

1->.: CCTV camera / LED lights / strips / player

2->.: Water purifier/ Aquarium/ air humidifier/ audio turntable/ LED torch

3->.: Router/Modem/Beauty & Health equipment

4->.: Medical machine / POS machine / monitor/ toys/LCD

5->.: Pump / display / digital photo frame / other electronic device/Switch

FAQ

Question	Answer
Are you a manufacture ?	Yes, We are a over 10 year factory
What is the main product of your factory ?	We are the supplier for 0-124W global power adapter, including wall plug adapter,desktop adapter, USB CHARGER, Switching power supply, Class 2 power supply, Open frame power supply and so on.
Can you design the ODM based on our design?	Yes,we have engineer team , one week make up sample, 33days sample test start to MP .
Could I have third party to QC the product ?	It's okay for our company
Can i visit your factory ?	That's perfect!We are very happy if you come here!
What's the MOQ ?	Trial order 470PCS . MOQ 1000PCS
What's the sample cost ?	Free samples, we welcome our customers to take samples for testing
What's the payment terms ?	T/T , Pyapay, WU . 50% as the deposit in advance and balance paid before delivery.
What's the production lead time?	500-1K: 7-13 working days. 3K-10K: 11-15 working days. 10-30K: 15-31 working days.
