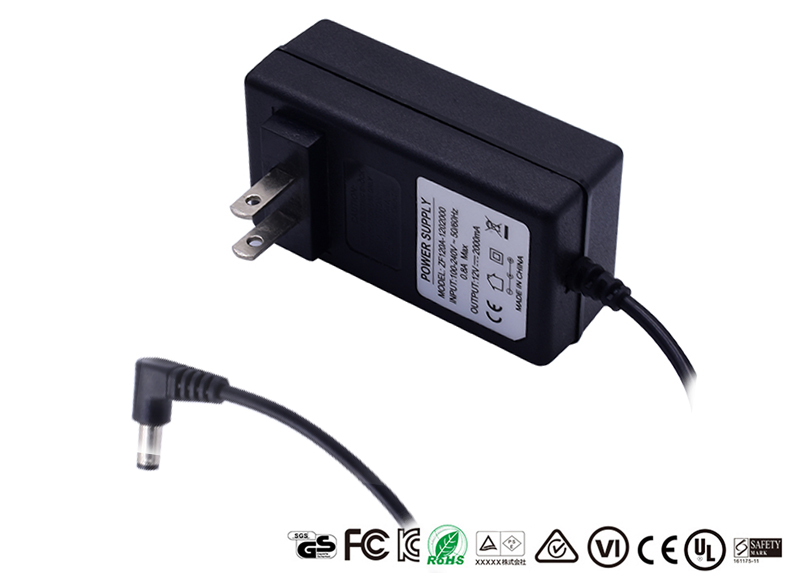

2 Years Quality Assurance Sealed Lead Acid Battery Charger 4.2V 8.4V 12.6V 14.4V

Ask Lasest Price
Brand Name :	Haifyer
Model Number :	ZF120A-1202000BA
Certification :	CE FCC UL GS BIS ROHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :	1200000PCs/Month
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

2 Years Quality Assurance Sealed Lead Acid Battery Charger 4.2V 8.4V 12.6V 14.4V

2 Years Quality Assurance Sealed Lead Acid Battery Charger 4.2V 8.4V 12.6V 14.4V
Output ratings

Outout(V)	Ouptput(A)	Power	DOE VI
14.4V	2000mA	28.8W	YES
14.5V	2000mA	29W	YES
14.6V	2000mA	29.2W	YES
13.8V	2000mA	27.6W	YES
14V	2000mA	28W	YES
7.2V	2000mA	14W	YES

Charge Instruction

1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement.

2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected.

3. Connect DC output to battery pack terminals. LED turn into red. It means in charging.

4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power.

Notice

1. Make sure your battery voltage match with your charger.

2. Always place the charger in well-ventilated, dry environment and indoor use only.

3. Subject to change without prior notice, please contact us for the latest information.

4. Indoor used only, never expose the charger to water such as rain and splash.

5. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging.

Specifications

NO.	Items	Specification
Input Characteristics	Input voltage	100-240V~, 50/60Hz
Input Characteristics	Min. Input current	0.5A
Output Characteristics	Max. Output Voltage	As below list
	Max. Output Current	As below list
	Battery Capacity	1000mAh Min
	Efficiency	80% Min
	Power Indication	LED=Green: Fully charged
	LED=Red: In charging
Charging Supervision and Protection Mechanism	Over Voltage Protection	YES
	Output Reverse Protection	YES
	CC CV	YES
Envrionment	Operation Temperature	32-140F
	Operation Humidity	20-85%
	Storage Temperature	40-80F
	Storage Humidity	10-95%
Mechanical	Dimension	---
	AC Plug	EU US UK AU KR JP CN
	Weight	110G
	Output Cable	1.2m 2464 24AWG
	Connector	5.5x2.1mm (Customizable )

FAQ

1. Q: Are you a factory?
A Yes,We are a professional usb charger,battery charger, power adapter manufacturer in Shenzhen

2. Q: How many employees in your factory?
A We have two factoreis total about 300 employees,professional production people,QC ,experienced R&D engineers and passional sales.

3. Q: How to guarantee quality?
A:Components come from famous factories, professional QC department,4 hours full load 100% burn-in

4. Q: Do you provide the free samples?
A: Yes, usually 1-2 samples.

5. Q: What is your lead time?

A: Samples 1-3 days, Mass production 15days

6. Q: What is your warranty?

A: 3years Warranty

7. Q: What are the payment terms:
A: T/T, Payapl, Western Union,L/C.
